Extrusion is a continuous processing method in which a hydrated mixture is exposed simultaneously to heat, pressure, and mechanical shear while being forced through a shaped opening called a die.

In food manufacturing, extrusion performs multiple functions at once. It cooks the mixture, mixes ingredients under controlled conditions, and forms the product into a defined shape. Variations of extrusion are widely used in human food production, livestock feed manufacturing, and pet food processing.

Before extrusion begins, ingredients are mechanically prepared to ensure consistent behavior inside the extruder.

Dry ingredients are ground to a uniform particle size and blended according to formulation specifications. Water and steam are then added to hydrate the mixture.

This hydrated blend passes through a pre-conditioning chamber before entering the extruder barrel. Pre-conditioning initiates hydration, begins partial starch gelatinization, and raises the temperature of the mixture so it enters the extruder in a plasticized state.²
This stage is part of the overall extrusion process and contributes to cumulative heat exposure.

A defining characteristic of extruded kibble is its reliance on starch.

Starch is not optional in extrusion. It is a structural requirement. When heated in the presence of moisture, starch granules gelatinize, forming a viscoelastic matrix that allows the product to expand and retain shape when pressure is released at the die.³

Without sufficient starch content, extrusion fails. The mixture cannot expand, bind, or hold its form.

For this reason, both grain-inclusive and grain-free kibbles rely on high-starch ingredients, including:

The starch source may change, but the structural dependency remains.

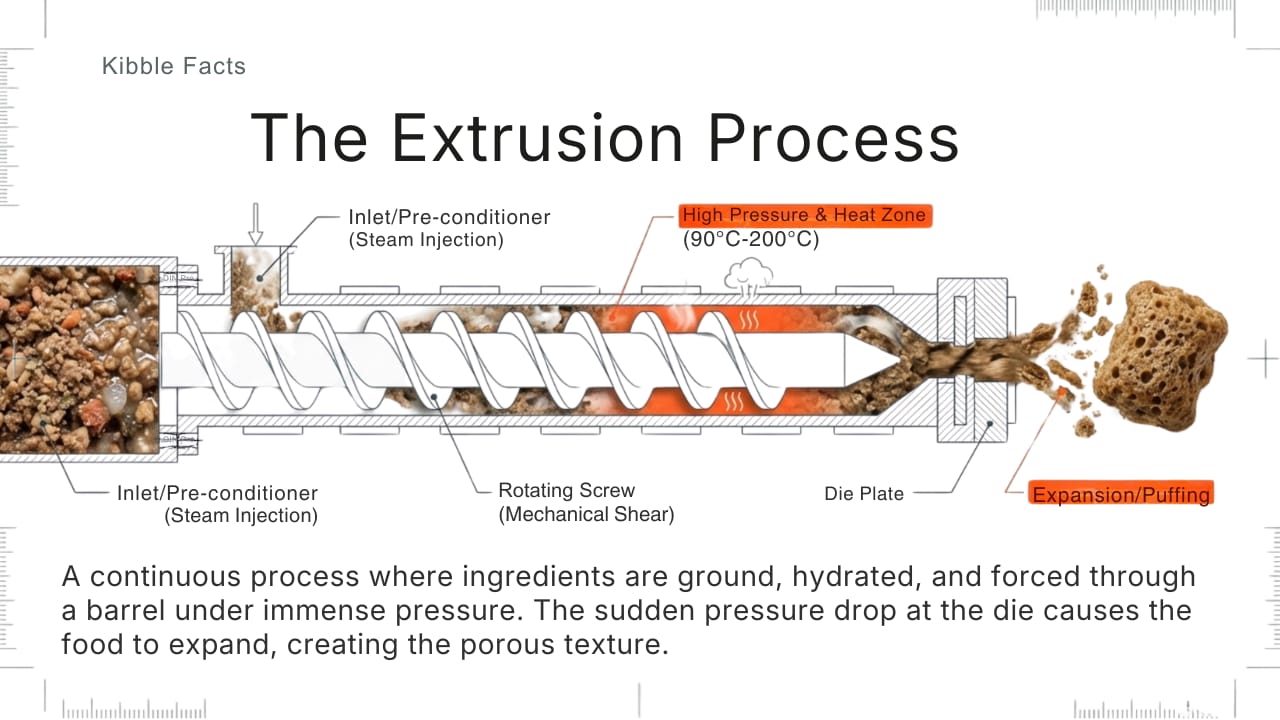

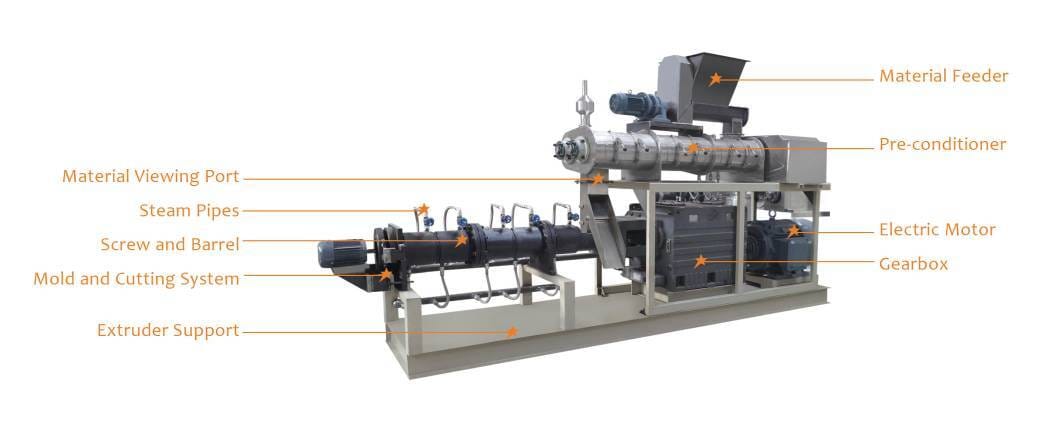

Once pre-conditioned, the mixture enters the extruder barrel.

Inside the barrel, rotating screws subject the food to:

These forces collectively cook the mixture while pushing it forward.

As the pressurized mass exits the die, the sudden drop in pressure causes rapid expansion. The product “puffs,” forming the familiar porous kibble structure before being cut to length.

This expansion is a physical phenomenon, not a nutritional optimization step.

Extrusion should not be understood as one brief cooking step.

Rendered ingredients in pet food are typically exposed to multiple thermal processes, including:

Each stage contributes to cumulative thermal and oxidative stress.⁵

The extrusion process produces predictable changes in food structure and composition.

Documented effects include:

These changes explain why extruded foods require post-processing nutrient fortification to meet established nutrient profiles.

Extrusion persists because it offers manufacturing advantages:

These properties align with industrial supply chains and regulatory frameworks rather than biological variability.

Extrusion is an engineering solution to food stability, scalability, and cost control.

It defines kibble structurally, chemically, and economically. Understanding extrusion clarifies why dry pet food:

This manufacturing context is foundational to understanding commercial kibble as a food category.
